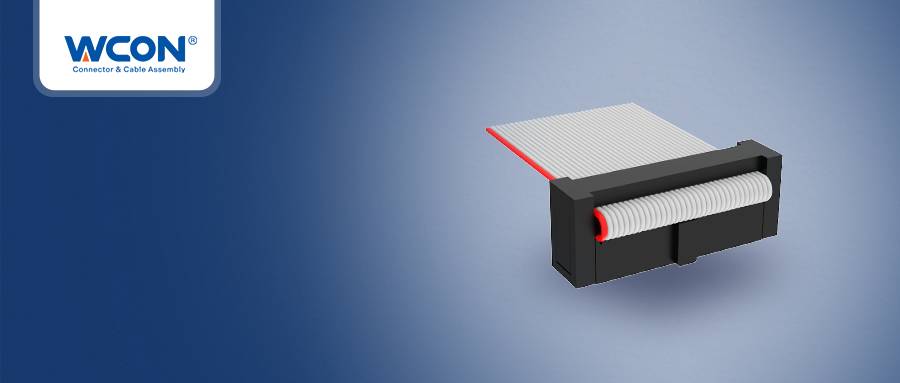

1.27mm Pitch IDC Connector: High-Efficiency Wire-to-Board Solution for Industrial Automation and Energy Storage Systems
WCON Launches 1.27mm Pitch Wire-to-Board Connector

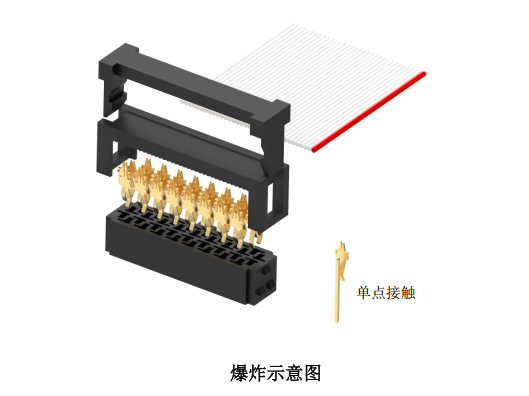

The 5242 series is a IDC connector with a dual-row pitch of 1.27mm (0.050 inches) and a row spacing of 2.54mm (0.100 inches). It offers flexible configurations ranging from 10 to 100 pins. The terminals feature an Insulation Displacement Connection (IDC) and single-point contact design. Its advantages include eliminating the need for wire stripping in crimping processes, simplifying assembly procedures, reducing assembly costs, and maintaining termination performance. It is an efficient wire-to-board connection solution.
Cable Crimping Methods
The 5242 series board-end IDC connector offers two wiring options:
-
Two-piece crimping, where the male and female ends are directly connected using IDC technology, supporting wire gauges from AWG 28-22, improving assembly efficiency by 30%.
-
Three-piece crimping, where a strain relief cover provides stress relief, preventing cable loosening due to vibration or external pulling, and enhancing mechanical stability during male and female end mating.

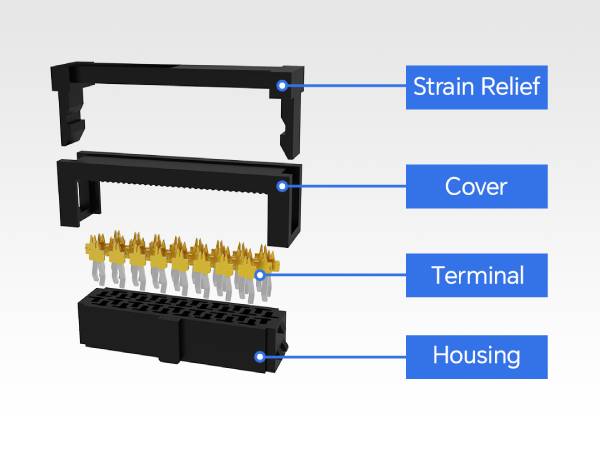

Three-piece crimping illustration
PRODUCT FEATURES
-
Up to 100 pins
-
Two wiring options available
-
IDC piercing design, reducing harness assembly time
-
Foolproof design to prevent incorrect insertion
Application
-
Industrial: Automation equipment, industrial control, testing equipment
-
Energy storage: Power systems, photovoltaic systems
-
Home appliances: Smart home devices, printers, vending machines
STANDARDS
- EIA-364
GET PRODUCT INFORMATION NOW
- Click to view detailed specifications and 3D models of the 5242 series board-to-board connectors:
CONTACT US
For more information on application solutions for the 5242 series connectors, please feel free to contact our technical support team.
