3652-S008-034XXR03

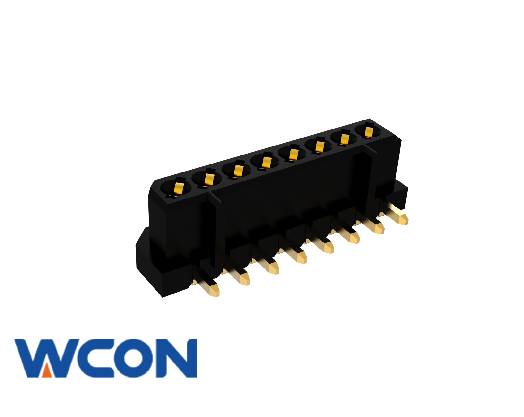

3652 BTB Connector,Socket,R/A DIP,Single Row,Without Post,Gold or Tin,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 50 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 0.5 AMP | Contact Material | Phosphor Bronze | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PA9T | |
| Insulation Resistance | 500 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Reel | |
RoHS
符合
REACH
符合
-
DescriptionPart Number
-
3652 BTB Connector,Male,Single Row,With or Without Post,Gold or Tin,Black
-
3652 BTB Connector,Male,Single Row,With or Without Post,Gold or Tin,Black
