1325-11XXXXZXXXCR02

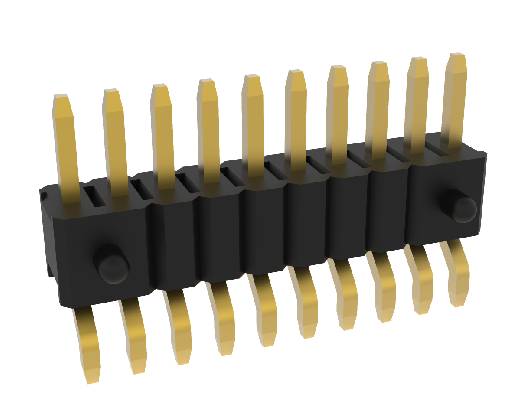

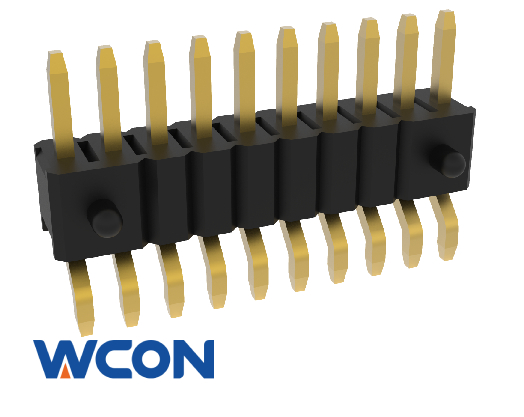

Pin Header Connector,Horizontal,Surface Mount,Single Row,2.50mm Height,Gold or Tin over nickel,Black,With Post
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 60 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 1 AMP | Contact Material | Brass | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PA9T | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 100 V/AC | Packaging | Tube,Tray | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
Female Header Connector,Vertical,Single Row,4.60mm Height,Gold or Tin over nickel,Black
-
Female Header Connector,Vertical,Single Row,8.50mm Height,Gold or Tin over nickel,Black
